Introduction
Formwork plays a central role in concrete construction because it shapes, supports, and holds fresh concrete until it gains sufficient strength to support itself. Before concrete hardens, it is heavy, wet, and unable to maintain its intended shape without a stable mould. Formwork provides the temporary structure in construction, helping concrete elements such as slabs, beams, columns, walls, and foundations take shape accurately in accordance with project requirements.
For contractors, formwork affects far more than the shape of the finished concrete. Poor planning can lead to misalignment, grout leakage, panel movement, failed inspections, delayed pours, and costly rework. The selected system should therefore match the project’s reuse cycles, structural repetition, labour availability, finish requirements, site access, and storage limits.
Key Takeaways:
- Formwork in construction supports fresh concrete until it can hold its intended shape.
- Proper alignment, stability, and panel condition affect accuracy, surface quality, safety, and project progress.
- Timber, plywood, steel, and aluminium systems suit different structural and site requirements.
- Selection should consider load capacity, access, finish, handling, and expected reuse.
- Early planning for materials, deliveries, supports, and inspections can reduce delays, wastage, and corrective work.
Understanding the Importance and Uses of Formwork in Construction
What Is Formwork in Construction?
Formwork in construction refers to the moulds, panels, and supporting systems used to hold fresh concrete in place until it hardens and gains sufficient strength. It is used to form structural elements such as slabs, beams, columns, walls, foundations, staircases, lift cores, and other concrete components.
Before concrete sets, it cannot hold its intended shape by itself. It needs a stable temporary structure that can contain the wet concrete during pouring, compaction, and early curing. The formwork also helps determine the final dimensions, alignment, edges, levels, and visible surface finish of the completed concrete element.
Good formwork in construction should be strong enough for the intended pour, properly supported, accurately positioned, and suitable for the site conditions. If the formwork shifts, leaks, bulges, or is installed out of line, the resulting concrete may require hacking, patching, grinding, or other corrective works before the project can move forward.
Why Formwork Matters in Construction Projects
Formwork may be removed after concrete gains strength, but its effect remains in the finished structure. The quality of formwork in construction can influence whether the completed element matches the drawings, connects properly with other works, and provides a surface that is ready for the next trade.
1. It Supports Structural Accuracy
Concrete takes the shape of the formwork, so its alignment and stability affect the final dimensions of slabs, beams, columns, walls, and foundations. Accurate formwork supports dimensional accuracy by helping the finished concrete match the required sizes, levels, and positions.
2. It Influences Concrete Surface Quality
Panel condition, joint tightness, pouring, and compaction all affect the concrete finish. Damaged or uneven concrete formwork may leave marks, rough patches, stains, or inconsistent textures on the surface.
3. It Contributes to Site Safety
Fresh concrete places heavy pressure on formwork, especially during the casting of walls, columns, and suspended slabs. Proper bracing and load-bearing support help maintain formwork stability throughout the pour. This reduces the risk of failure, injury, concrete wastage, and damage to nearby works.
4. It Helps Maintain Construction Progress
Formwork in construction affects the timing of reinforcement, concrete pouring, dismantling, and follow-on trades. Any delay may hold up masonry, services, waterproofing, and finishing works. Early planning for materials, manpower, lifting, storage, and inspections helps keep these activities moving in sequence.
What Are the Common Types of Formwork in Construction?
Common types of formwork usually differ by material, assembly, strength, finish, handling, and reusability. The right choice depends on the concrete element, project scale, site access, and required finish.
1. Timber Formwork
Timber formwork in construction is flexible, easy to cut, and suitable for smaller projects, irregular shapes, and custom details. However, warped or damp timber may affect formwork alignment. When comparing construction timber suppliers, contractors should consider timber quality, condition, availability, and delivery timing.
2. Plywood Formwork
Plywood provides a broad, flat surface that can produce a more even concrete finish. However, damaged or moisture-affected sheets may swell, leak, or create uneven results. Contractors should therefore check the sheet type, thickness, and condition with their plywood supplier before use.
3. Steel Formwork
Steel formwork is durable and suitable for repeated concrete elements that require strength and consistency. As the panels are heavy, contractors must plan lifting, transport, storage, and handling carefully. To help reduce procurement gaps before inspection and concrete pouring, engage a reliable steel supplier in Singapore to coordinate the delivery of props, reinforcement, mesh, and related materials.
4. Aluminium Formwork
Aluminium formwork is lighter than steel and suited to repetitive layouts, such as multi-storey developments. It can support faster assembly, but panels must follow the planned system layout to maintain proper positioning and alignment.

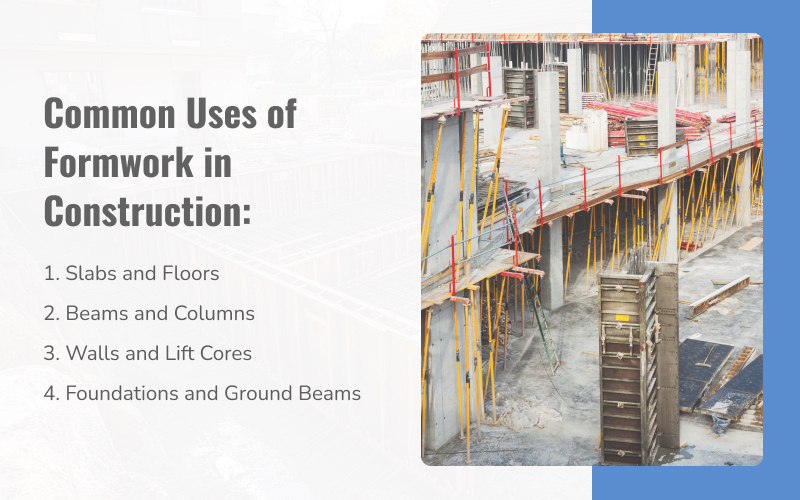

What Are the Common Uses of Formwork in Construction?
Formwork in construction is used across many stages of concrete works because each structural element requires a specific shape, support arrangement, and level of accuracy. It helps concrete elements achieve the required shape, alignment, and finish safely and consistently.
1. Slabs and Floors
Formwork is used to shape horizontal concrete elements such as floor slabs, roof slabs, suspended slabs, podium decks, and transfer slabs. It creates the required slab thickness, levels, edges, openings, and drop panels before the concrete hardens.
2. Beams and Columns
Beam formwork shapes horizontal structural members, while column formwork creates vertical supports in rectangular, circular, or customised forms. It allows these elements to be cast according to the dimensions and positions shown in the structural drawings.
3. Walls and Lift Cores
Formwork can be deployed for structural walls, retaining walls, lift shafts, stair cores, and service cores. These elements are commonly found in multi-storey buildings, basements, and other structures that require reinforced concrete walls.
4. Foundations and Ground Beams
Formwork in construction is also used for footings, pile caps, ground beams, rafts, and other foundation elements. It defines the shape and dimensions of the concrete base before the upper structure is built.
Formwork Selection and Best Practices
What to Consider When Selecting Formwork in Construction
Choosing formwork in construction is not only about choosing a material that can hold concrete. The system should suit the structure, finish, work schedule, site space, and material supply.
1. Structural Requirements and Load Capacity
The formwork must suit the size, shape, and weight of the concrete element. As wide slabs, tall walls, and columns place greater pressure on the system, the design should account for fresh concrete, reinforcement, workers, equipment, and nearby site activity. Contractors should also follow the engineer’s specifications to confirm that the supporting components can carry the required loads.
2. Surface Finish Expectations
The required finish also affects the choice of formwork panels. Exposed concrete usually needs smoother panels, tighter joints, and better dimensional stability to reduce visible marks and uneven lines. Although covered surfaces may not require the same visual standard, the formwork should still be flat and secure enough to prevent defects that could affect later finishing work.
3. Reusability and Cost Efficiency
Besides performance, contractors should consider the total cost over the project. A system with a higher upfront price may offer better value when it can be reused across repeated floors, walls, or columns. Its durability, labour requirements, maintenance, reuse cycles, and storage needs should therefore be reviewed together.
4. Ease of Assembly and Dismantling
The system should also fit the planned work sequence. Formwork that is difficult to assemble, adjust, inspect, or remove can slow concrete works and delay follow-on trades. On compact sites, easy-to-handle formwork can save time where access and storage space are limited.
5. Site Space and Storage Conditions
These site constraints should also guide the final selection. Heavy or bulky systems may be difficult to move and store where space is limited, or deliveries follow fixed schedules. Storage conditions matter as well, since timber and plywood need protection from moisture. Meanwhile, metal components require proper handling to reduce damage or corrosion.
Best Practices for Formwork Use
Good formwork practice depends on preparation, accurate installation, regular checking, controlled pouring, and careful dismantling. These steps help ensure that the formwork performs as intended and remains suitable for reuse where applicable.
1. Prepare the Work Area Before Installation
Before installing the formwork, clear and level the work area so panels and supports can be positioned correctly. Debris, loose materials, uneven ground, and other obstructions should be removed before the installation begins.
The site team should also confirm the reference lines, concrete element locations, and required panels, props, ties, and accessories. Completing these checks early helps prevent missing materials or site conditions from delaying the work.
2. Set Out and Align the Formwork Accurately
Once the area is ready, set out the formwork according to the dimensions, levels, and positions shown in the construction drawings. Grid lines, reference marks, and level checks help ensure that slabs, beams, columns, walls, and other elements are formed in the correct location.
Check formwork alignment at each stage of assembly, not only after installation. This allows positioning or dimensional errors to be corrected before reinforcement and concrete placement begin.
3. Secure the Joints, Supports, and Bracing
After positioning the panels, secure the joints, props, ties, supports, and bracing. Tight joints help reduce grout leakage, while proper load-bearing support keeps the formwork stable under the weight and pressure of fresh concrete.
This step requires particular attention for walls, columns, beams, and suspended slabs. All supporting components should be checked for stability, placement, and suitability before the site proceeds to the next stage.
4. Confirm Reinforcement, Openings, and Embedded Items
Before pouring, check the formwork together with the reinforcement bars, wire mesh, spacers, sleeves, service openings, and embedded items. Each component should be correctly positioned and secured so it does not move during concrete placement.
Pipe openings, drainage points, electrical services, and other structural details should also be verified at this stage. Correcting missing or misplaced items after the concrete hardens may require drilling, hacking, patching, and additional approval.

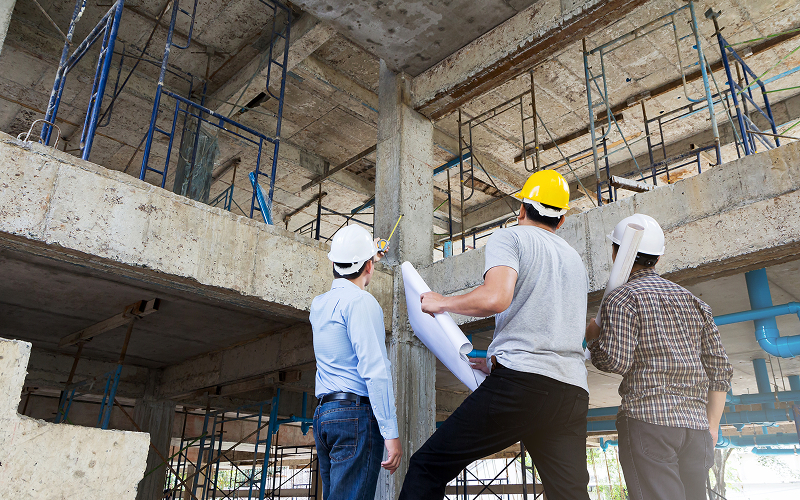

5. Carry Out a Final Pre-Pour Inspection
Once the reinforcement and embedded items are in place, conduct a final inspection of the entire formwork system. The inspection should cover panel condition, joint tightness, formwork alignment, support stability, bracing, cleanliness, and access around the casting area.
Loose debris should be removed from the formwork surface, as it may affect the concrete finish. Where required, release agents should also be applied evenly to support cleaner dismantling after the concrete reaches sufficient strength.
6. Monitor the Formwork During Pouring
Checks should continue while the concrete is being placed. The site team should watch for leakage, movement, bulging, or signs that the supports and bracing are becoming unstable.
Concrete should also be poured at a controlled rate to avoid placing excessive pressure on the formwork too quickly. Close monitoring is especially important during large pours and when casting tall vertical elements.
7. Remove, Clean, and Store the Formwork Properly
Formwork should only be removed after the concrete has reached the required strength and the project team has confirmed that dismantling can proceed. Careful removal helps protect concrete edges, corners, and surfaces from cracking, chipping, or other damage.
After dismantling, clean the panels and components before checking them for damage. Reusable materials should then be stored in a stable, sheltered area to reduce warping, moisture exposure, corrosion, and unnecessary wear.
Common Site Risks That Can Disrupt Formwork Works
Formwork in construction must be coordinated with reinforcement, spacers, embedded plates, sleeves, drainage openings, and electrical conduits before pouring. When these items are misaligned, panels may need to be reopened or adjusted, increasing labour, rework, and the risk of missing the planned pour.
These coordination problems can become harder to manage on sites with limited storage, restricted access, damaged materials, or delayed deliveries. Without the required panels, supports, or components at the right stage, assembly may slow down, inspections may be delayed, and the wider construction programme may be affected.
Supporting Formwork Projects With Chi Han Trading

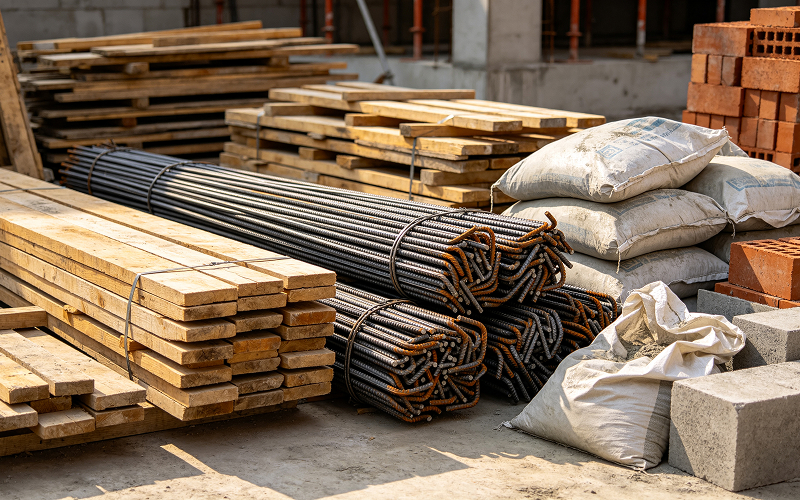

Formwork in construction depends on steady access to suitable materials, from timber and plywood to steel, mesh, cement, sand, aggregates, precast concrete, and other construction supplies. When these materials are available on time and in the right quantities, contractors can prepare formwork, coordinate reinforcement, and proceed with concrete works with fewer procurement-related interruptions.
Founded in 1995, Chi Han Trading is a dependable building material supplier in Singapore. We assist contractors in managing different stages of formwork work by arranging deliveries around site access, storage limits, and concrete pour schedules.
As formwork activities depend on timely material availability, delays can affect reinforcement work, inspections, concrete pours, and follow-on trades. Our team works with contractors to coordinate order quantities, delivery timing, site access, unloading arrangements, and replenishment needs according to the construction schedule.
Our large inventory and lorry crane transportation also support projects where formwork materials must be delivered in stages due to limited storage space or changing site requirements. By planning deliveries around casting sequences, contractors can reduce shortages, avoid excessive on-site storage, and keep formwork activities moving between each pour.
Conclusion
Formwork in construction is temporary, but its effect on concrete quality, safety, and site progress is long-lasting. It supports fresh concrete, shapes structural elements, affects surface finish, and helps keep works aligned with drawings and project requirements.
When selecting formwork in construction, contractors should account for compact site conditions, material delivery, storage, reuse, workmanship, inspection requirements, and project timelines. Suitable timber, plywood, steel, supports, and related materials can help contractors reduce rework, improve construction flow, and achieve more consistent concrete results.
As an experienced building construction materials supplier in Singapore, Chi Han Trading helps contractors coordinate material sourcing and deliveries for formwork-related works and wider construction needs,
Contact us to learn how our materials and expertise can help your projects progress safely and efficiently.
Frequently Asked Questions
1. How does effective formwork contribute to cost savings?
By minimising material wastage and ensuring precise measurements, effective formwork can significantly reduce overall project costs, especially when reusable systems are employed.
2. Can formwork be reused?
Yes, formwork can often be reused, depending on the material, condition and project requirements. Steel and aluminium formwork usually offer higher reuse potential, while timber and plywood may have a shorter reuse cycle depending on moisture exposure, handling, panel quality and site storage conditions.
3. What causes honeycombing in concrete after formwork removal?
Honeycombing can happen when concrete does not fully fill the formwork, when there are gaps or leakage at panel joints, or when concrete compaction is insufficient. It appears as rough, hollow or exposed aggregate areas on the concrete surface and may require rectification before the next stage of work.
